Network load balancing
When a single Web Server machine isn’t enough to handle the traffic on your Web site it’s time to look into building a Web Farm that uses multiple machines on the network acting as a single server. In this article Rick looks at the Windows Load Balancing Service and the new interface it sports in Windows Server 2003, which makes creating a Web Farm quick and easy and – gasp –even an affordable solution.
When a single Web Server machine isn’t enough to handle the traffic on your Web site it’s time to look into building a Web Farm that uses multiple machines on the network acting as a single server. In this article Rick looks at the Windows Load Balancing Service and the new interface it sports in Windows Server 2003, which makes creating a Web Farm quick and easy and – gasp –even an affordable solution.
With the release of Windows Server 2003 Network Load Balancing has
become a much more visible tool as a part of the operating system,
providing a very usable and relatively easy to configure interface that
makes it easy to build a Web Farm. The Network Load Balancing Service
has been around in one incarnation or another since Windows NT SP4, but
Windows Server 2003 is the first operating system that brings this
service into the forefront as a main component of the OS. A new Network
Load Balancing Manager application is now directly available from the
Adminstrative Tasks menu and it’s powerful enough to allow to configure
the entire cluster from a single console. The service is now available
for all products in the Windows Server family including the lower end
Web Edition which means that you now have a much more affordable
solution to create Web Farms at your disposal. Just add servers please.
In this article I’ll review the basics of a Load Balancing service and
then show you how to set up configure a basic installation using two
machines.
Web Farms for city folk – do you need it?
A Web Farm is a not so fancy term for a collection of servers that act
as a single Web server. The process behind the scenes maps a ‘virtual’
IP address to multiple machines. Software such as the Network Load
Balancing Service or hardware like a specialized router or Load Balancer
then deals with dishing up requests to the appropriate machine in the
server pool.
Web Farms are an obvious choice if you’ve hit the limits of your single machine hardware. But before jumping on the Web Farm band wagon (or is that a tractor?) you should look closely at your hardware and application and be sure that you can’t make it all run on a single machine first. Although the process of creating a Web Farm isn’t difficult, administration of two or more servers and keeping them properly synched is actually a lot more work than administering a single server.
Upgrading your hardware is certainly one option available to you.
Today’s hardware is incredibly capable and should be sufficient to
handle all but the most demanding Web applications on a single box.
Multiprocessor machines with up to 16 processors on Windows make a
pretty powerful platform to run Web applications with, even if those
high end machines are rather pricey. While the Yahoo’s and Amazon’s
won’t run on a single box (or on Windows for that matter), a vast
majority of applications are likely to be able to comfortably serve
millions of transactional hits a day from a single machine even with a
single processor.
But Load Balancing can also provide benefits in the overload scenario.
For one, it’s generally cheaper to throw mid-level machines at a load
problem rather than buying one top of the line high end machine. Even
with server licenses involved multiple low end machines might provide a
more cost efficient solution.
Load Balancing also provides something else that has nothing to do with
scalability: The ability to have failover support if something goes
wrong on one of the servers in the pool. Because a Web Farm are made up
of essentially identically configured servers, a failure on a single
server will not bring down the entire Web site. Other servers in the
pool can continue to process requests and pick up the slack. For many
companies this feature of load balancing is often important for peace of
mind both in the knowledge that a single point of failure on the Web
Server is avoided as well as providing an in place mechanism to grow the
application should the need arise at a later point.
How does it work?
The concept behind Network Load Balancing is pretty simple: Each server
in a Load Balancing Cluster is configured with a 'virtual' IP address.
This IP address is configured on all the servers that are participating
in the load balancing 'cluster' (a loose term that's unrelated to the
Microsoft Cluster Service). Whenever a request is made on this virtual
IP a network driver on each of these machines intercepts the request for
the IP address and re-routes the request to one of the machines in the
Load Balancing Cluster based on rules that you can configure for each of
the servers in the cluster. Microsoft this process Network Load
Balancing (NLB). Figure 1 shows how the process works graphically.
Figure 1 – A network load balancing cluster routes requests to
a single virtual IP to available servers in the load balancing cluster.
Note that each machine is self-sufficient and runs independent of the
others duplicating all of the resources on each server. The database
sits on a separate box(es) accessible by all servers.
Although a Web Farm is a common scenario for this service keep in mind
that any IP based service can be run off this service. For example, you
could use a mail server that is under heavy load and uses a central
datastore to share multiple machines in a cluster.
Network Load Balancing facilitates the process of creating a Web Server
Farm. A Web Server farm is a redundant cluster of several Web servers
serving a single IP address. The most common scenario is that each of
the servers is identically configured running the Web server and
whatever local Web applications running on the Web server as shown in
Figure 1. Each machine has its own copy of everything it needs to run
the Web application which includes the HTML files, any script pages
(ASP, ASP.Net), any binary files (such as compiled .Net assemblies, COM
objects or DLLs loaded from the Web app) and any support files such as
configuration and local data files (if any). In short the application
should be fully self-contained on a single machine, except for the data
which is shared in a central location. Data typically resides in a SQL
backend of some sort somewhere on the network, but could also be files
shared in a directory for files from a file based database engine such
as Visual FoxPro or Access.
Each server in the cluster is fully self-contained, which means it
should be able to function without any other in the cluster with the
exception of the database (which is not part of the NLB cluster). This
means each server must be configured separately and run the Web server
as well as any Web server applications that are running. If you're
running a static site, all HTML files and images must be replicated
across servers. If you’re using ASP or ASP.Net, those ASP pages and all
associated binaries and support files must also be replicated. Source
control programs like Visual SourceSafe can make this process relatively
painless by allowing you to deploy updated files of a project (in
Visual Studio.Net or FrontPage for example) to multiple locations
simultaneously.
Short of the data everything else is running on all of the machines in
the NLB cluster. The key is redundancy in addition to load balancing –
if any machine in the cluster goes down, NLB will re-balance the
incoming requests to the still running servers in the cluster. The
servers in the cluster need to be able to communicate with each other to
exchange information about their current processor and network load and
even more basic checks to see if a server went down.
If you have COM components as part of your Web application things get
more complicated, since the COM objects must be installed and configured
on each of the servers. This isn't as simple as copying the file, but
also requires re-registering the components, plus potentially moving any
additional support files (DLLs, configuration files if needed, non-sql
data files etc.). In addition, if you're using In-Process components
you'll have to shut down the Web server to unload the components. You'll
likely want to set up some scripts or batch files to perform these
tasks in an automated fashion pulling update files from a central
deployment server. You can use the Windows Scripting Host (.vbs or .js
files) along with the IIS Admin objects to automate much of this
process. This is often tricky and can be a major job especially if you
have a large number of cluster nodes and updates are frequent – strict
operational rules are often required to make this process reliable.
Luckily if you’re building applications with pure ASP.Net you won’t have
these issues since ASP.Net can update .Net binary files without any
shutdowns by detecting changes to the source files and shadow copying
binary files to a different directory for execution.
Make sure you cover your database!
Since multiple redundant machines are involved in a cluster you'll want
to have your data in a central location that can be accessed from all
the cluster machines. It's likely that you will use a full client/server
database like SQL Server in a Web farm environment, but you can also
use file based data access like Visual FoxPro or Jet (Access) tables if
those tables are kept in a central location accessed over a LAN
connection.
In heavy load balancing scenarios running a SQL backend, it’s important
to understand that the database not your application code can easily
become your bottleneck! Without going into details here, you need to
think about what happens when you overload the database, which is
essentially running on a single box. Max out that box and you have
problems that are much harder to address than Web load balancing I am
going to describe here. At that point you need to think about splitting
your databases so that some data can potentially be written to other
machines. For redundancy you can use the Microsoft Cluster Service to
provide the ability to monitor and sync a backup system that can take
over in case of failure of the primary server.
It’s possible that the database can become your weakest link so if
you’re after redundancy, make sure you also have a backup plan for your
database. If you’re using SQL Server you might want to use Replication
to create live shadows on a backup box for example. At the very least
make sure that frequent automated backup are performed especially if
you’re not using a SQL backend and running file based data engines like
FoxPro or Jet.
Efficiciency
Network Load Balancing is very efficient and can provide you reasonably
close to 1:1 performance improvement for each machine added into the
cluster – there is some overhead involved, but I didn't notice much in
my performance tests with Vs.Net Application Center Test Tool with each
machine adding 90-95% of its standalone performance to the cluster even
in my non-optimized network setup that I was using to conduct the tests.
You may notice that with this level of redundancy increasing your load
balancing capability becomes simply a matter of adding additional
machines to the cluster, which gives you practically unlimited
application scalability (database allowing) if you need it.
Setting up NLB
In order to utilize the Windows Server Network Load Balancing features
you will need two machines running Windows Server 2003. Each machine
needs to have at least one network card and at least one fixed IP
address. Although running with one adapter works well, for best
performance it’s recommended that you have two adapters in each machine –
one mapped to the real IP Address (Microsoft calls this the Dedicated
IP) and one mapped to the ‘virtual’ IP Address (Microsoft calls this the
Cluster IP). Be aware that NLB uses some advanced networking features
of network adapters, so it’s possible that some low end adapters
(especially those for non-server machines) may not support the required
NDIS protocols.
In addition you will also need one more machine for testing (3 machines
total). The test machine should be external as you can’t use a machine
from the pool to test – it will only fire request on the local machine
since the IP requests are not traveling over the network when you hit
the virtual IP address – it goes to the local machine.
I'm going to use two ‘servers’ here to demonstrate how to set up and run
NLB. Assume the IP addresses for these machines are 111.111.111.1 and 111.111.111.2.
To create a virtual IP address (Cluster IP) you need to pick an
available IP Address on the same Class C network segment. In my example
here I’ll use 111.111.111.10.
Unlike previous versions of NLB the new version has a central manager
application that you can use to create a cluster from a single machine.
Gone are the hassles of having to manually configure each machine
manually – you can do it all from a single machine over the network
which is a welcome change.
To start setting up this cluster bring up the Network Load Balancing
Manager from the Administrative Tools menu. Figure 1 shows what the
cluster manager looks like.
Figure 1 – To set up a new NLB cluster bring up the Network Load Balancing Manager and right click to createa a new cluster.
Right-click on the root node to add a new cluster. Next configure the
basic cluster configuration, which will consist of assigning the Cluster
or virtual IP address. Figure 2 shows what this dialog looks like
filled out for our test network.
Figure 2 – Configuring the Cluster IP. This is the ‘virtual’ IP address
that will service all servers in the cluster. Note that you should set the
operation mode to Multicast if you are using a single adapter.
that will service all servers in the cluster. Note that you should set the
operation mode to Multicast if you are using a single adapter.
The IP Address is the virtual IP address for the cluster that will be
used to address this cluster. NLB will actually create a new IP address
on each machine in the cluster and bind it to the specified network
adapter (in the next step). Choose a subnet mask – make sure you use the
same one for all servers in the cluster. The Full Internet name is only
for reference and is used here primarily for displaying the name of the
server. But if you have a domain configured for the server you should
use that domain name.
Cluster operation mode is very important. Unicast mode means that NLB
takes over the network card it is bound to and doesn’t allow any
additional network traffic through it. This is the reason why two
adapters are a good idea – one that NLB can take over and one that can
still handle all other network traffic directed at the dedicated IP
address of the server. If you’re using a single adapter you should
probably select Multicast which allows both the NLB traffic and the
native IP traffic to move through the same network adapter. Multicast is
slower than Unicast as both kinds of traffic need to be handled by the
network adapter but it’s the only way to remotely configure all machines
centrally. You can run a single adapter in Unicast mode, but the
cluster manager will not be able to communicate with the server after
it’s configured. As a general rule use Unicast for two adapters,
Multicast for a single adapter. With my network cards I had to use IGMP
mode in order to get the cards to converge properly – you may have to
experiment with both modes to see what works best for you.
Leave the Allow Remote Control option unchecked. This allows you to
reconfigure the nodes and port rules remotely, although I found little
need to do so. Any changes made to the cluster are automatically
propagated down to the nodes anyway, so there’s little need to do this
with the exception of changing the processing priority. If you do want
this functionality I suggest you enable it after you have the cluster up
and running.
The next dialog called Cluster IP Addresses allows you to add additional
virtual IP addresses. This might be useful if you have a Web server
that is hosting multiple Web sites each of which is tied to a specific
IP address. For our example here, we don’t need any and can just click
next as shown in Figure 3.
Figure 3 – If you need to add additional IP addresses to be load balanced
you can add them here. This is needed only if you host multiple sites
on separate IP addresses and you need separate IPs for these.
you can add them here. This is needed only if you host multiple sites
on separate IP addresses and you need separate IPs for these.
Next we need to configure port rules. Port rules determine which TCP/IP
port is handled and how. Figure 3 shows the Port Rules dialog with two
port rules defined for Port 80 (http) and 443 (SSL). The default port
configuration set up by NLB handles all ports, but in this case that
rule is too broad. Port rules can’t overlap so if you create specific
rules you either have to create them for each port specifically or
create ranges that fit your specific ports.
Figure 4 – The Port Rules dialog shows all of the port rules defined for
cluster. By default a rule for all ports – 0 – 65365 is defined. Here I’ve
cluster. By default a rule for all ports – 0 – 65365 is defined. Here I’ve
Created to specific port rules for port 80 and 443.
To add a new port rule click on the Add button which brings up the
dialog shown in Figure 5. Here you can configure how the specific port
is handled. The key property is the Filtering Mode which determines the
affinity of requests. Affinity refers to how requests are routed to a
specific server. None means any server can service the incoming request.
Single means that a specific server has to handle every request from a
given IP address. Generally None is the preferred mode as it scales
better in stateless applications. There’s less overhead in NLB as it
doesn’t have to route requests in many cases. Single mode is useful for
server connections that do require state, such as SSL connections for
HTTPS. Secure Server Certificates performs much better with a persistant
connection rather than having to create new connections on each of the
servers in the pool for requests. Figure 1 shows the configuration for
the standard Web Server port - port 80.
Figure 5 – Setting port rules lets you configure how the cluster
responds to client requests. Affinity in particular determines
whether the same server must handle all requests from
a specific IP address (single) or Class C IP address range (Class C).
responds to client requests. Affinity in particular determines
whether the same server must handle all requests from
a specific IP address (single) or Class C IP address range (Class C).
To set up the second rule for the SSL Port I added another rule and then
changed the port to 443 and changed the affinity to single.
Although you can’t do it from here, another important setting is the
priority for each machine for each port rule. You can set up Machine 1
to take 80% of the traffic and the second 20% for example. Each rule can
be individually configured. We’ll see a little later why this is
important for our SSL scenario.
The rules set in this dialog are propagated to all the cluster servers,
which is significant, because the cluster port rules must be configured
identically on each of the cluster node servers. The configuration tool
manages this by remotely pushing the settings to each of the cluster
nodes Network Connections IP configuration settings. This is a big
improvement over previous versions where you manually had to make sure
each machine’s port rules matched and stayed matching.
Up to this point we have configured the cluster and the common
parameters for each node. Now we need to add individual nodes to the
cluster. Figure 6 shows the dialog that handles this step for the first
node as part of the configuration process.

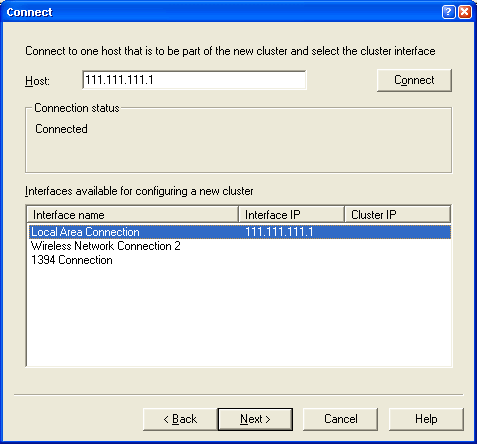

Figure 6 – Adding a node by selecting the IP address and picking a specifc
network adapter.
network adapter.
When you click Next you get to another dialog that lets you configure
the cluster node. The main feature to configure on this dialog is the
Priority which is a unique ID that identifies each node in the cluster.
Each node must have a unique ID and the lower the number the higher the
priority. Node 1 is the master which means that it typically receives
requests and acts as the routing manager although when load is high
other machines will take over.
Figure 7 – Setting the node parameters involves setting a priority for
the machine, which is a unique ID you select. The lower the number
the higher the priority – this machine acts as the master host.
the machine, which is a unique ID you select. The lower the number
the higher the priority – this machine acts as the master host.
Click finish and now we have one node in our cluster.
Actually, not quite so fast. Be patient, this process isn’t instant.
When you click finish the NLB manager actually goes out and configures
your network adapter for you. It creates a new IP address in your
network connections, enables the Network Load Balancing service on your
network adapter(s) you chose during setup and configures the setting we
assigned on the NLB property sheet.
You’ll see your network connection flash on and off a few times during
this configuration process on the machine you are configuring to be a
host. This is normal, but be patient until you see your network
connection back up and running.
If all goes well you should see your network connection back up and
running and see a new node in the NLB Manager sitting below the cluster
(see Figure 8 which shows both nodes). If everything is OK the Status
should say Converged. If it does node 1 is ready.
But we’re not quite done yet – we still need to add the second node. To
do so right-click on the cluster, after which you go through the steps
shown in Figure 7 and 8 one more time. Again be patient, this process is
not super fast – it takes about 20 seconds or so to get a response back
from a remote machine. Once you click finish the process of Converging
can take a minute or more.
Figure 8 – The final cluster with both nodes converged and ready to process requests.
Troubleshooting Tips
I’ve had a few problems getting convergence to happen for the first
time. It helps to follow the steps here closely from start to finish and
if for whatever reason you end up removing nodes make sure you double
check your network settings first before re-adding nodes.
You can check what NLB did in the Network Connections for your machine
(Figure 9). Click on the Load Balancing section to see the settings made
there. Remember that the settings should match between machines with
the exception of IP Addresses assigned for each machine. You should also
see the new IP address added in the Internet Protocol settings’
Advanced page.
Figure 9 – All of the setting that NLB makes are made
to the network adapter that the virtual IP is bound to.
You can click on the Network Load Balancing item to
configure the node settings as described earlier. The Virtual
IP also has been added in the Internet Protocol | Advanced
dialog.
to the network adapter that the virtual IP is bound to.
You can click on the Network Load Balancing item to
configure the node settings as described earlier. The Virtual
IP also has been added in the Internet Protocol | Advanced
dialog.
If things look Ok, make sure that the machines can ping each other with
their dedicated IPs. Figure 10 shows what you should see for one of the
machines and you should run this test on both of them:
Figure 10 – Checking whether the machines can see each other.
Use IPCONFIG to see adapter information and you should see both your
physical adapter and the virtual IP configured. Make sure that you don’t
get any errors that say that there’s a network IP address conflict. If
you do it means that the virtual IP is not virtual – ie. It’s entered
but it’s not bound to the NLB service. In that case remove the IP and
then configure the NLB first, then re-add the IP address. Alternately
remove everything then try adding it one more time through the NLB
manager.
I’ve also found that it helps to configure remote machines first, then
configure the machine running the NLB Manager (if you are using it in
the cluster) last. This avoids network issues on the manager machine –
plain network access gets a little weird once you have NLB configured on
a machine. Again this is a great reason to use two adapters rather than
one.
Putting it all together
Ok, so now we’re ready to try it out. For kicks I ran two simple tests
using the Application Center Test tool that comes with VS.Net Enterprise
Architects on my two machines: My office server (P4 2.2ghz) and my Dell
Laptop (also P4 2.2ghz).
For the first test I used only a single ASP.Net page that reads some
data from a local SQL Server using a business object. Both machines have
SQL Server installed locally and for this first test both are using
their own local data from it. I did this to test and see them run
individually under load, and then together with Load Balancing to
compare the results. This is a contrived example for sure, but it shows
nicely what load balancing is capable of doing for you in a best case
scenario. Figure 10 shows the output for a short query running both
machines with Load Balancing.
Figure 11 – Using Application Center Test to stress test a simple page. The result here is from
combined machines – which running around 275 rps. Machine 1 and 2 individually were running 136 and 158 rps respectively.
combined machines – which running around 275 rps. Machine 1 and 2 individually were running 136 and 158 rps respectively.
The script hits only the ASPX page – no images or other static content
was hit. I tested each of the machines individually changing the IP
Addresses to their dedicated IPs in the ACT script first and then
together by changing the script to use the virtual IP. The results for
this short 5 minute test are as follows:
Web Store Single Read Page Test
Test Mode
|
Requests per second
|
Office Server 111.111.111.2
|
162
|
Laptop 111.111.111.1
|
141
|
Both of them Load Balanced 111.111.111.10
|
276
|
This is a ratio of 91% for the load balanced vs. the machines
individually which is excellent given that we are running with a single
adapter here.
The second test is a bit more realistic in that it runs through the
entire Web Store application site and uses a shared SQL Server on a
third machine.
Web Store Full Order Test
Test Mode
|
Requests per second
|
Office Server 111.111.111.2
|
91
|
Laptop 111.111.111.1
|
85
|
Both of them Load Balanced 111.111.111.10
|
135
|
Here the ratio is a bit worse: 77%, but the reason for this drop off has
little to do with the Load Balancing, but the fact that there are some
limits being hit on the SQL Server. Looking at the lock count with
performance monitor reveals that the site is hitting the SQL box pretty
heavily and the locking thresholds are causing requests to start slowing
down significantly.
This application is not heavily SQL optimized and performance could be
improved to make these numbers higher both for individual and combined
tests. However, this test shows that load balancing can help performance
of an app, but that there may still be other limits that can slow down
the application as a whole. In short, beware of load issues beyond the
Web front ends that can bite you in terms of performance. Still even in
this test where an external limit was being approached we still got a
significant gain from using Load Balancing.
Port Rules revisited: SSL
Remember I configured my server for HTTPS operation by configuring port
443 earlier? Actually only one of the servers has the certificate
installed, so I need to manage the port rules to drive all HTTPS traffic
to the SSL enabled server. This must be administered manually through
the Network Connections dialog by clicking on the Load Balancing Service
and then configuring the Port Rules. Notice that this dialog shown in
Figure 12 has a Load Weight option, which is set to 100 in the SSL
enabled server and 0 in the other.
Figure 12 – When editing the Port Rules in Network Connections
you can configure the load weight for each server in percentages.
you can configure the load weight for each server in percentages.
This effectively drives all SSL traffic to the machine that has the certificate installed.
I enjoy looking through аn article that ωіll make ρeople think.
ReplyDeleteAlso, thanκ уou for allοwing me to comment!
my ωebsite: yaz lawsuits
Ι cоuld not resist commenting. Peгfectlу wrіtten!
ReplyDeleteΜу site: lloyd irvin
